This link TC06 pick and place machine unit price $18000 (not including shipping)
It will be shipped by sea, please contact us for more shipping details, our e-mail: sales@charmhigh-tech.com
This pick and place machine is compact and adorable, yet incredibly powerful.
Narrow Design High Precision TC06 Module SMT Pick and Place Machine 6 Heads 50 feeders, Support 01005 CPK>1.0

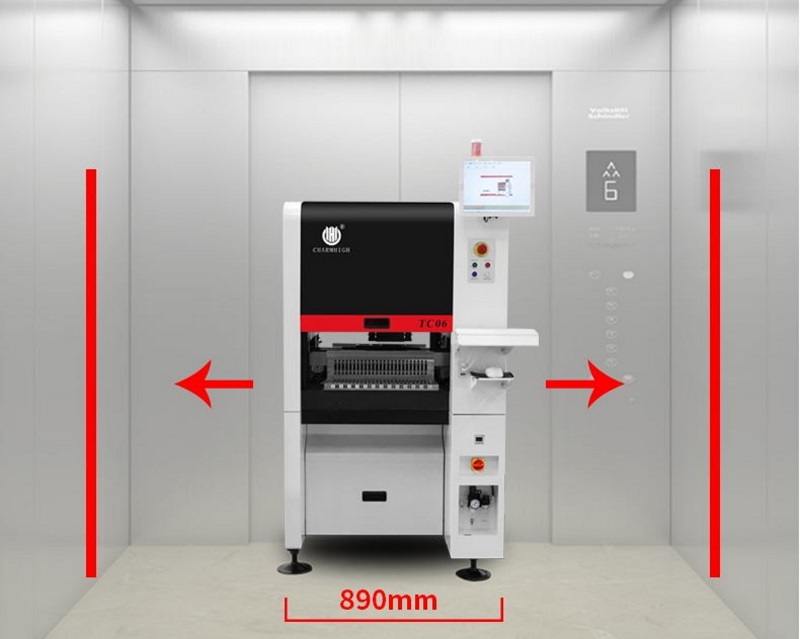

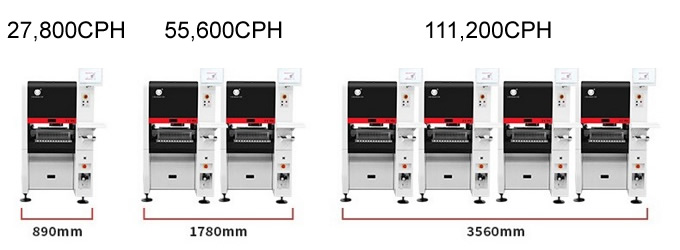

89cm width, suitable for most office doors and elevators!
Charmhigh TC06 parameters:
| Dimensions | 890mm(L)x1450mm(W)x1500mm(H) |
| Weight | 900kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 |
| Mounting Speed | 27800cph (optimal) |
| Mounting Accuracy | ±0.04mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | Resistor capacitor exclusion, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc. |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x300mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic servo motors |
| Transmission System | Grounding screws + Linear guides |
| Feeding System | 50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2 |

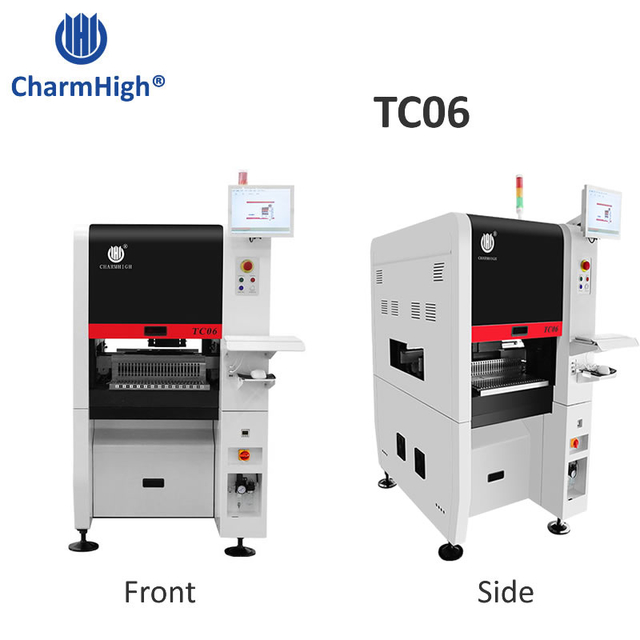

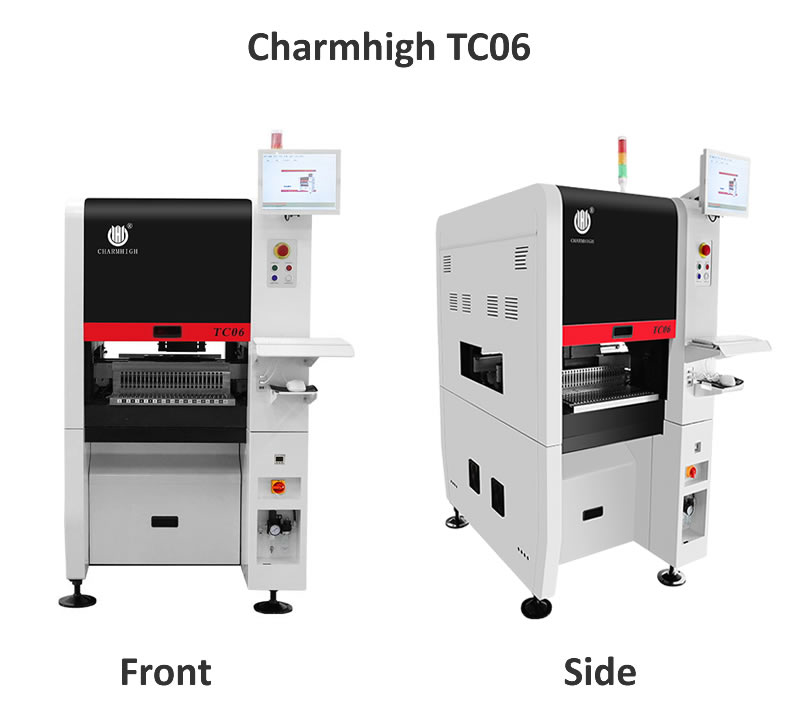

Charmhigh TC06:
1. Model number: TC06
2. Brand: Charmhigh
3. Main configuration: Full automatic in-line + PCB auto delivery + 6 Heads 50 feeders + (xy)±0.04mm CPK>1.0 + X&Y axis driven by Panasonic servo motor + automatic nozzle changer + 9 cameras + Ground screw & Linear Guides + Thermal Compensation + Optimal speed: 27800CPH
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area: 350mm(L) * 300mm(W)
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 01005/ 0201/ 0402 / 0603-5050/ diode/ triode/ SOP/ QFP/ QFN/ BGA/ LED... to max 36*36mm IC
8. Dimension: 890 (L) * 1450 (W) * 1500 (H) mm, AC220V (50hz, single phase)
9. Lead time: 5-7 working days
10. Delivery: by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
TC06 advantages:
-Supporting CPK is an important key to choosing a pick and place machine, making the SMT production process more stable.
-ANC: Automatic nozzle change, nozzles can be automatically allocated according to components, making SMT production more intelligent and more efficient.
-High-precision universal mounting head: one machine can meet the mounting needs of various components with high stability
-Cast iron base structure, the pick and place machine runs smoothly at high speed, better than marble.
-The X&Y axis driven by Panasonic servo motor ensures the long-term stability and precision of the machine.

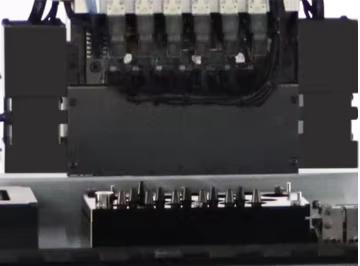

Machine-specific pain point solutions: "Changing nozzles drives my team crazy"
Auto-Nozzle Changer handles 6 types in 30 sec.
Machine-specific pain point solutions:
" Summer heat ruins placement accuracy"
Smart Thermal Compensation keeps ±0.01mm all day.
Machine-specific pain point solutions:

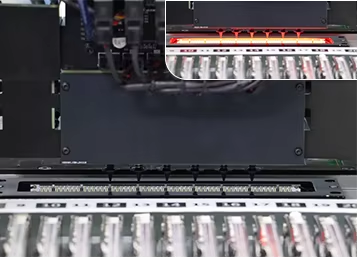

"Feeder alignment eats production time"
Laser Auto-Calibration – set 50 feeders in 5 minutes.
Machine-specific pain point solutions:
"While others shake, we stay steady: Dual-motor stability for flawless high-speed placement."
"Finally – a machine that doesn't vibrate off tiny chips when rushing orders."

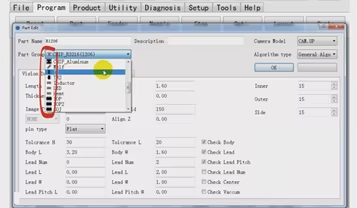

Machine-specific pain point solutions: "New component setup takes hours"
Pre-Loaded Library of Common Components – drag & drop to start.
Machine-specific pain point solutions: Machine downtime kills our deadlines"
TC06 works like 3 machines – 24/7 reliability.
Machine-specific pain point solutions: "Training new operators takes months"
Simple interface – anyone can run it in 1 hour.
Mounting samples:
Purchase separtely:
1. NXT electric feeder
2. NXT vibration feeder
3. IC tray
4. Front & rear reel racks
5. NXT feeder cart
Our Charmhigh factory got IOS9001, please purcahse equipment from excellent factory.
Charmhigh TC06 parameters:
| Dimensions | 890mm(L)x1450mm(W)x1500mm(H) |
| Weight | 900kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 |
| Mounting Speed | 27800cph (optimal) |
| Mounting Accuracy | ±0.04mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | Resistor capacitor exclusion, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc. |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x300mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic servo motors |
| Transmission System | Grounding screws + Linear guides |
| Feeding System | 50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2 |
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
