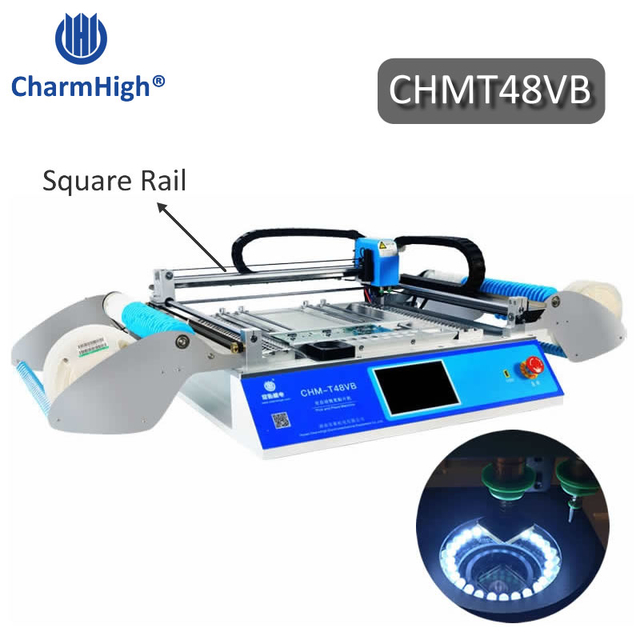

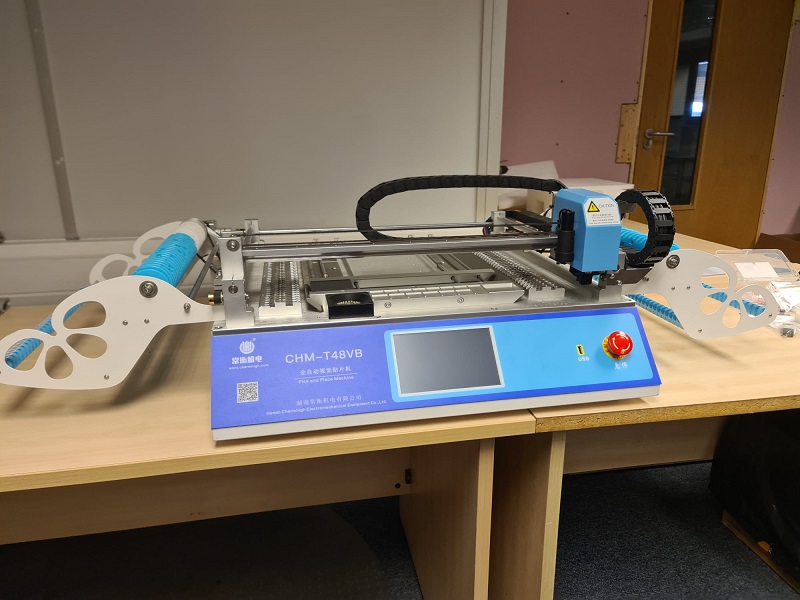

Dual Side Feeder CHMT48VB Desktop SMT Pick and Place Machine (left 29pcs + right 29pcs)
With built-in Industry board with Embedded Linux system. Best Seller!
All-in-one mahcine, room saved, very good for small batch production, protopyting, researching, eduction etc.
Introduction:
1. Model number: CHM-T48VB
2. Brand: Charmhigh
3. Main configuration: Desktop type + All -in-one machine + Two vision cameras + Embedded Linux system + 2 Heads 58 tape feeders + Closed-loop control motor with encoder + Touch screen(USB mouse also supported)
4. Max PCB area: 345*355mm
5. Component: 0402-5050, SOP, QFN, QFP, BGA etc.
6. Dimension: 1320mm(L)×750mm(W)×335mm(H), AC220V/110V (50/60Hz)
7. Lead time: 1-3 working days(In stock)
8. Delivery: by DHL express door to door, total takes 6-9 days.
9. Payment method: wire transfer (T/T); PayPal; credit card; W/U
10. Packing: plywood box
11. HS code: 8479.89.62.00 (Pick and place machine)

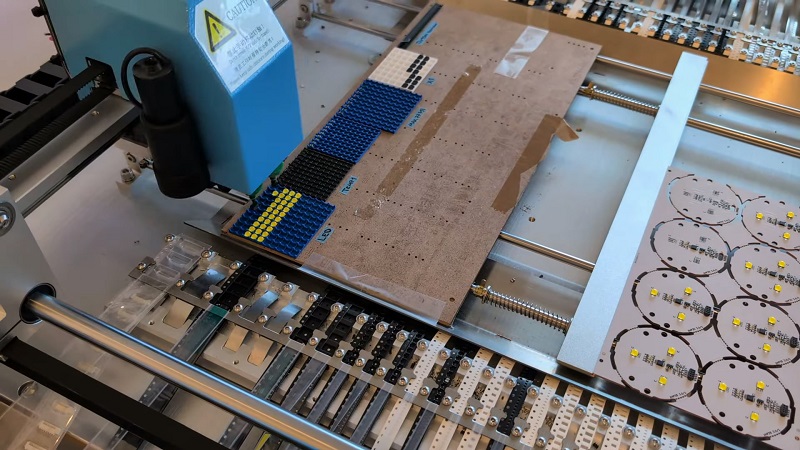

Description:
The CHMT48VB is a low cost good accuracy two heads desktop sized pick and place machine from Charmhigh. It has more feeders compare to 48VA model. It can install more different kinds of tapes on machine.
You can use it to produce a variety of designs, 50 to 100pcs at a shot. It works very well for low-volume high-mix pick and place of 0402 based designs.
CHMT48VB is a vision-based desktop pick and place machine which is using embedded Linux system, you can use this machine without external computer, very stable and operation very convenient.
It is very reliable with low-cost economic model with high precision and easy to learn. It compatible with all different kinds of components 0402-5050,SOP, QFN, QFP... very suitable for for prototype builders, hobbyists, developers, and development groups and small batches production.
CHMT48VB compatible software: Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc. As long as the software can generates the X.Y coordinates.
Youtube working video:
CHMT48VB production video from customer:
www.youtube.com/watch?v=LjGCP9bvGNc
www.youtube.com/watch?v=YjPGfoU1Ijo
www.youtube.com/watch?v=xF7N4crTOtQ
Specifications:
Model | CHM-T48VB |
PCB area | 10mm*10mm - 355mm*355mm |
X Y axis Travel | 510*460mm |
Z axis moving | 15mm (Highest component 5mm) |
Placement heads | 2pcs, comes with 4 nozzles |
Feeders | -Tape reel feeder 58pcs (left 29pcs + right 29pcs) |
Vision system | Two cameras (up & down cameras) Vision max range 22*22mm |
Drive | Closed-loop control stepper servo drive system, make sure never lose step |
Z axis self-return detection | Yes, it prevent nozzles breaking |
Pull pin self-return | Yes, it prevent needle breaking |
Leakage of material detection method | Vacuum detection, vision detection |
Touch screen | 7 inch industry touch screen |
Main board | Independent research industry main board |
System | Embedded Linux system |
Mounting speed | 4000cph (vision off); 3000cph (vision on) |
Mounting precision | ±0.025mm |
Components | 0402-5050,SOP,QFN,QFP ..etc. |
Machine dimension | L 960mm* W 705mm* H 335mm |
Vacuum pump | -92KPA (2pcs,build-in, mute type) |
External air source | No need (machine build-in mute vacuum pump 2pcs) |
External PC | No need |
Voltage | 220VAC (110VAC), 50Hz/60Hz |
Net weight | 68kg |
Gross weight | 85kg / 116*80*52cm |
Standard packing list for CHMT48VB:
1) Pick and Place Machine CHMT48VB 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Pull needle 2
6) Coil for pull pin1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray 4
13) Grease 1
Kindly note:
The CHMT48VB pick and place machine is complete set with all accessories included in the package, QC passed. Ready to use.
We provide timely after-sales service, each machine 100% tested well before ship out. Please purchase it with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
