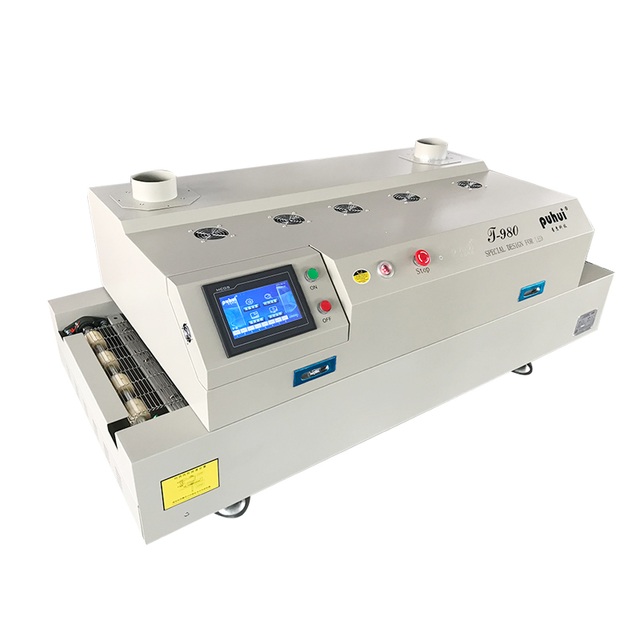

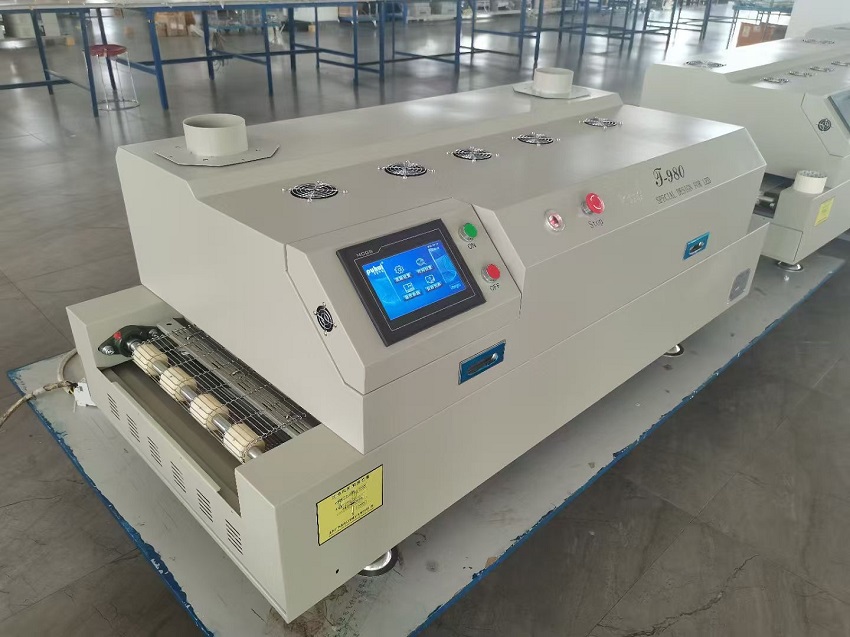

The T-980 is an advanced 8-zone conveyor reflow oven featuring an intuitive touchscreen control system and a 400x1160 mm soldering area. With multiple independently controlled heating zones, it provides precise temperature profile adjustment and reliable soldering performance for a wide range of PCB assembly applications.
Equipped with 8 heating zones, the T-980 allows flexible temperature profile adjustment to meet the soldering requirements of different PCB designs and electronic components. The extended heating area supports stable, consistent soldering results for demanding SMT applications.
The combination of infrared (IR) and hot air heating technology ensures efficient heat transfer and uniform temperature distribution. A specially designed circulation fan maintains stable airflow, making the T-980 suitable for continuous reflow soldering of PCBs populated with LED, BGA, and other electronic components.
The intelligent PID temperature control system provides accurate temperature regulation throughout the soldering process. High-current solid-state relays (SSRs) enable reliable, non-contact switching of the heating elements, helping maintain stable heating performance and reduce temperature fluctuations during operation.
The conveyor system is driven by a stepper motor and dedicated stepper motor driver, ensuring smooth and stable PCB transportation. The conveyor speed is adjustable from 0 to 600 mm/min (0-10 mm/s), allowing operators to optimize soldering time according to different PCB requirements.
The integrated touchscreen provides convenient machine operation, real-time status monitoring, and clear display of heating parameters. Its intuitive interface simplifies temperature setting and process monitoring, helping operators manage the reflow soldering process more efficiently.
T-980 Reflow Oven Technical Specifications
Model | T-980 |
Heating zone quantity | Upper 5 / down 3 |
Length of heating zone | 1160mm |
The heating type | IR and hot air heating |
Cooling zone quantity | 1 |
Maximum width of PCB | 400mm |
The operation direction | Left to right |
Transmission mode | Net + Chain transmission |
Speed of conveyor belt | 0-600mm/min |
The power supply | 3 phase 5 lines 380V/220V |
Peak power | 13.2KW |
Average power | 7.0KW |
Heating up time | 20mins |
Temp control range | Room temp~350 degree |
Temp control mode | PID closed-loop control |
Temp control accuracy | +-1 degree |
PCB temp distrib deviation | +-2 degree |
Overall dimensions | 1600*734*567mm |
Weight | 130KG |
Model: T-980
Heating Zones: 8
Heating Technology: Infrared (IR) + Hot Air
Soldering Area: 40x1160 mm
Temperature Control: Intelligent PID
Conveyor Drive: Stepper Motor
Conveyor Speed: 0-600 mm/min (0-10 mm/s)
Control Interface: Touch screen
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machines, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before shipping out.
Tech support & Contact:
Kimi Liu: Mob/ WhatsApp: +86 135 106 75756
E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: www.youtube.com/kimiLiuCharmhigh
If you want to see more information and videos, please contact us by E-mail.
We will reply you as soon as possible.
T-980 Reflow Oven Technical Specifications
Model | T-980 |
Heating zone quantity | Upper 5 / down 3 |
Length of heating zone | 1160mm |
The heating type | IR and hot air heating |
Cooling zone quantity | 1 |
Maximum width of PCB | 400mm |
The operation direction | Left→right |
Transmission mode | Net + Chain transmission |
Speed of conveyor belt | 0-600mm/min |
The power supply | 3 phase 5 lines 380V/220V |
Peak power | 13.2KW |
Average power | 7.0KW |
Heating up time | ≤20mins |
Temp control range | Room temp~350℃ |
Temp control mode | PID closed-loop control |
Temp control accuracy | ±1℃ |
PCB temp distrib deviation | ±2℃ |
Overall dimensions | 1600*734*567mm |
Weight | 130KG |
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
Please enter your target price
Please provide a quantity
United States
Please provide your name
Please enter your email adress
Enter a valid email address
Please enter the phone number
Please enter the inquiry information
T962C SMT Reflow Oven Benchtop Infrared IC Heater 400*600mm Rework Sation Heating Station
T937M Lead Free SMT Reflow Oven 3300w Hot Air Infrared IC Heater 350x400mm
T962A Plus SMT Reflow Oven Benchtop Infrared IC Heater 450x370mm 2300w T962A+ Heating Station

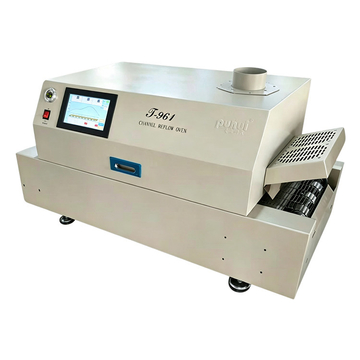

T961 Desktop Reflow Oven Touch Screen Infrared IC Heater Soldering Machine
