This CHM-PC850 reflow soldering oven unit price $9500 (not including shipping)
It will be shipped by sea, please contact us for more shipping details, our e-mail: sales@charmhigh-tech.com

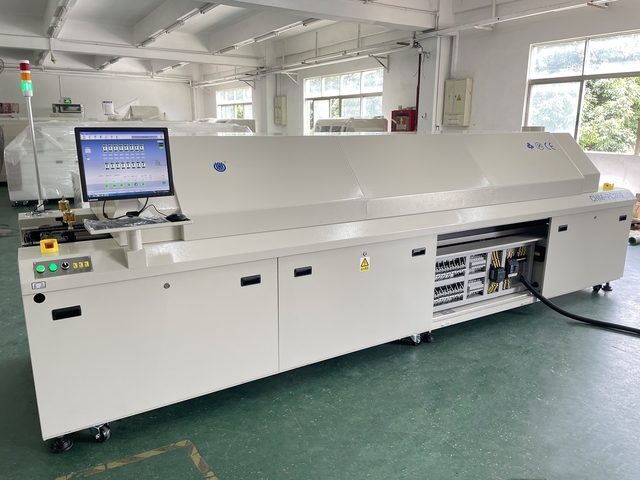

Big-Sized 8 Zones Lead-Free SMT Reflow Soldering Oven
Model No. | CHM-PC850 |
Heating Parts Parameters | |
Number of Heating Zones | Up8 + Bottom8 |
Length of Heating Zones | 3150mm |
Heating Pattern | Full Hot Air (up and down in a small cycle) |
Number of Cooling Zones | Plasma fan air-cooled plus two-stage liner cooling (length 800MM) |
Conveyor Parts Parameters | |
Max.Width Of PCB | Mesh width 500mm |
Conveyor Direction | L→R |
Conveyor Height | 880±20mm |
Transmission Agent | Mesh + automatic rail |
Conveyor Speed Range | 0-2000mm/min |
Control Parts Parameters | |
Power Supply | 5 Wire, 3 Phase, 380V |
Start Power | 48KW |
Power Consumption | Approx 8-10KW |
Warming Time | Approx 20 mins |
Temp. Setting Range | Room Temp.-380℃ |
Temperature Control Method | PC+PID+SSR |
Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
Temperature Control Precision | ±2℃ |
Temperature Deviation on PCB | ±2℃ |
Abnormal Alarm | Temperature abnormal(too high or too low after the constant temperature keeping) |
Power-off Protection | UPS |
Open Way | Electric Screw Rod |
General Parameters | |
Dimension(L*W*H)mm | 4600*1300*1470 mm |
Weight | Approx 2000Kg |
Detail real pictures:
Large SMT production line recommend:
1. PCB loader
2. Full-automatic solder paste printer G5
3. PCB conveyor 0.6m
4. Pick and place machine TS10 (10 heads) + TM08 (8 heads)
5. PCB conveyor 0.6m
6. 8 temp. zones reflow oven CHM-PC850
7. PCB unloader
Big-Sized 8 Zones Lead-Free SMT Reflow Soldering Oven
Model No. | CHM-PC850 |
Heating Parts Parameters | |
Number of Heating Zones | Up8 + Bottom8 |
Length of Heating Zones | 3150mm |
Heating Pattern | Full Hot Air (up and down in a small cycle) |
Number of Cooling Zones | Plasma fan air-cooled plus two-stage liner cooling (length 800MM) |
Conveyor Parts Parameters | |
Max.Width Of PCB | Mesh width 500mm |
Conveyor Direction | L→R |
Conveyor Height | 880±20mm |
Transmission Agent | Mesh + automatic rail |
Conveyor Speed Range | 0-2000mm/min |
Control Parts Parameters | |
Power Supply | 5 Wire, 3 Phase, 380V |
Start Power | 48KW |
Power Consumption | Approx 8-10KW |
Warming Time | Approx 20 mins |
Temp. Setting Range | Room Temp.-380℃ |
Temperature Control Method | PC+PID+SSR |
Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
Temperature Control Precision | ±2℃ |
Temperature Deviation on PCB | ±2℃ |
Abnormal Alarm | Temperature abnormal(too high or too low after the constant temperature keeping) |
Power-off Protection | UPS |
Open Way | Electric Screw Rod |
General Parameters | |
Dimension(L*W*H)mm | 4600*1300*1470 mm |
Weight | Approx 2000Kg |
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
